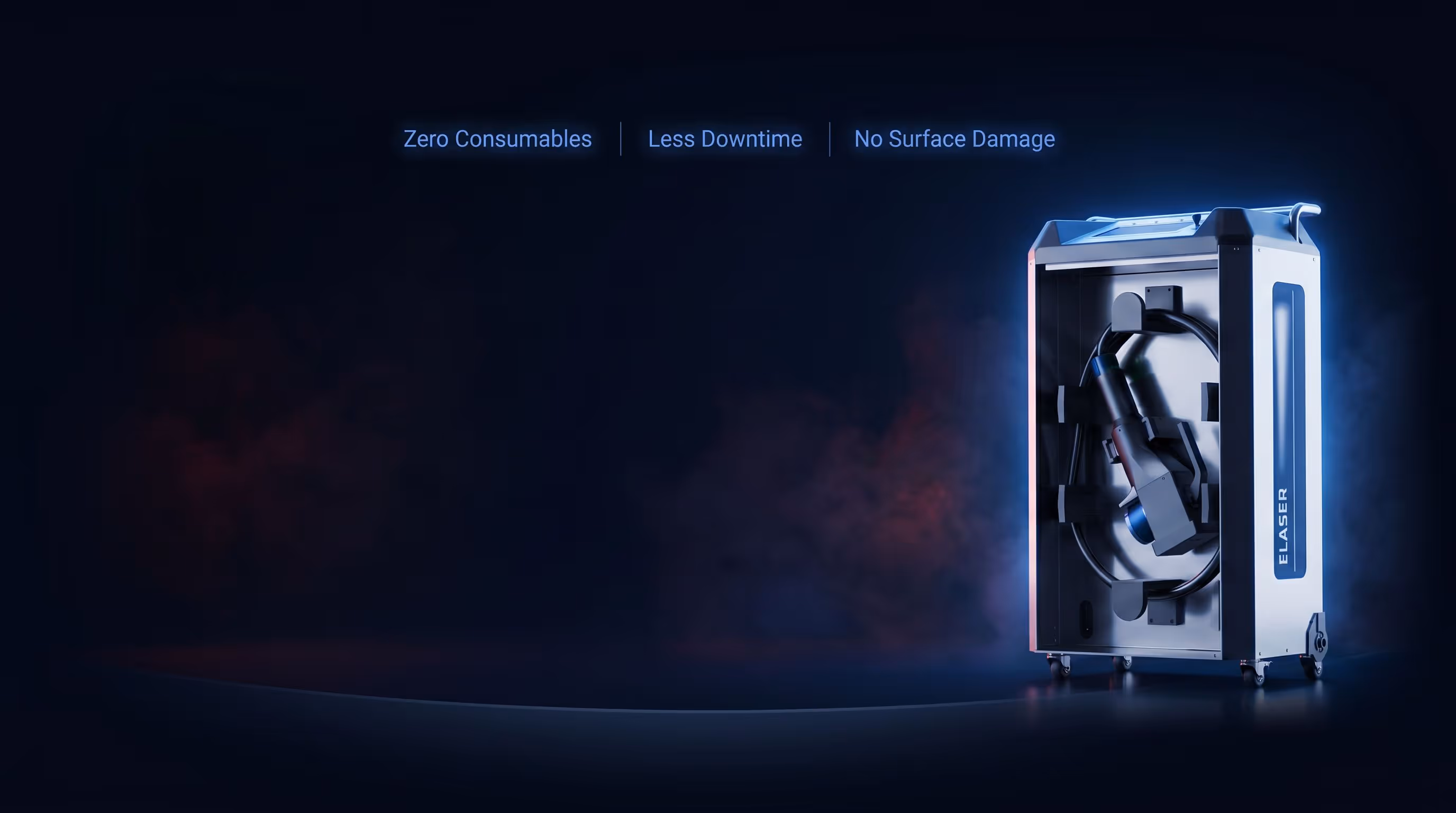

ELASER-RHZ
The world's first reduced hazard zone laser cleaning machine.
The ELASER-RHZ is our pioneering Reduced Hazard Zone cleaning system — engineered and built in the UK, and the only laser cleaner of its kind anywhere in the world.
Ordinary industrial cleaning demands a sealed-off, evacuated area before anyone can start; RHZ technology collapses that hazard zone to a fraction of the size, so cleaning can happen in open workshops, mixed-use facilities and public-facing settings more effectively.
A single operator lifts away rust, paint, coatings and ingrained contamination across almost any material, using laser light alone — no chemicals, no abrasive grit, no water. Just plug it in and clean.
Variants
Spec
Value
LASER SPECIFICATIONS
Max Power
300 W
Pulse energy
Up to 15 mJ
Pulse duration
100 ns
Wavelength
1550nm
Pulse repetition rate
Adjustable up to 200 kHz (CW)
Power tunability
0–100%
SCANNER & FIBER DELIVERY
Scanner type
2-D galvanometer
Max scan rate
10 m/sec
Scan shapes
Fully programmable through GUI
F-Theta lenses
Interchangeable, 75–500 mm working distance
Lens-protection windows
Included and replaceable
Delivery cable length
Up to 50m
ELECTRICAL, MECHANICAL & INTERFACES
Weight
Handheld under 3 kg · system under 50 kg
Power supply
110–250 VAC single-phase (<2000 W)
Laser class
Class IV
Interfaces
Ethernet + touchscreen
Surfaces
Laser cleaning removes the contaminant with minimal substrate loss, so you don't clean away what matters.
Removes
Adjustable power tunes to each layer, so one machine lifts everything from light oxides to thick coatings.
A focused, pulsed laser beam is aimed at the surface. Each pulse carries just enough energy to vaporise the unwanted layer — rust, paint, coating or residue — and flash it away.
A very wide range. Because the power is fully adjustable, one machine moves from delicate work — soiling, light oxides, graffiti on stone and masonry — right up to heavier weld scale and industrial coatings
Yes, by default our laser cleaning systems emit class 4 radiation due to the high power and energy pulses required for effective cleaning.
However, we have developed advanced engineering controls that ensure access to any radiation greater than class 1 is not possible.
Get in touch with our team to learn more.
Laser cleaning doesn't use any chemicals or abrasive media, so there's:
- Less (negligible) damage to the underlying surface.
- Less ongoing costs (our ELASER runs directly from your mains supply).
Very little. Running on electricity, there are no abrasives, chemicals, or other consumables to buy in or dispose of.
Yes, we do.
Yes. In-house engineering is one of our core strengths, and we regularly adapt systems around a customer's specific parts, environment or process. If your requirement isn't met by the standard configuration, let us know.
There are three.
This is the "eye-safe" (RHZ) model, built for enhanced safety.
There's also the standard handheld system for general portable cleaning, and AutoLASE: a robot-mounted version for automated production.
Almost certainly - we deliver our machines to customers all across the globe.
"Eye-safe" is the shorthand, but the accurate term is Reduced Hazard Zone (RHZ): it minimises the zone that you need to operate the machine. This makes it possible to use effectively for wider applications, such as in public spaces.
UK-Built
Shipped Worldwide
RHZ Technology
Up to 300 W
ELASER-RHZ in Action
Watch our team clean graffiti off a wall without any damage to the brick surface underneath.
Components
Everything You Need in One Small System
Everything you need is packed into one compact, lightweight unit you can wheel straight to the job.
No compressor, no water supply, no consumables to haul around: just plug it in and a single operator is ready to clean.
Reduced Hazard Zone Technology
Elaser-RHZ uses our patented "eye-safe" technology to minimise the hazard zone required, making it viable for more applications.
Lightweight Scanner
A sub-3 kg handheld scanner with a 2-D galvanometer and 10 m/s max scan rate.

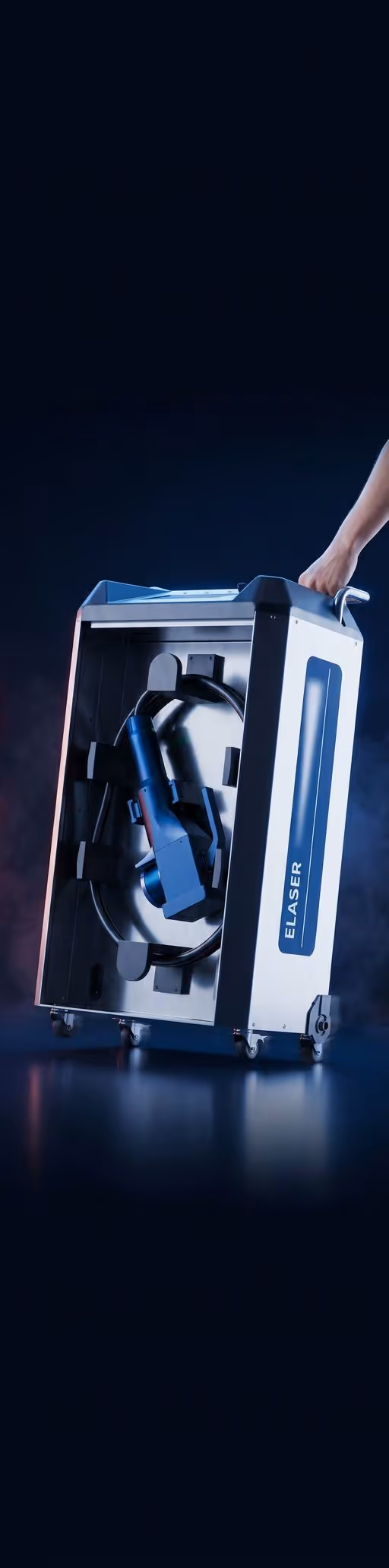

Portable Design
Compact and wheeled, and light enough for one person to move unaided — roll it from the workshop out to site and on to wherever the next job is.
Touchscreen
Dial power anywhere from 0–100% on the touchscreen to match each surface, with individual user logins keeping access secure.

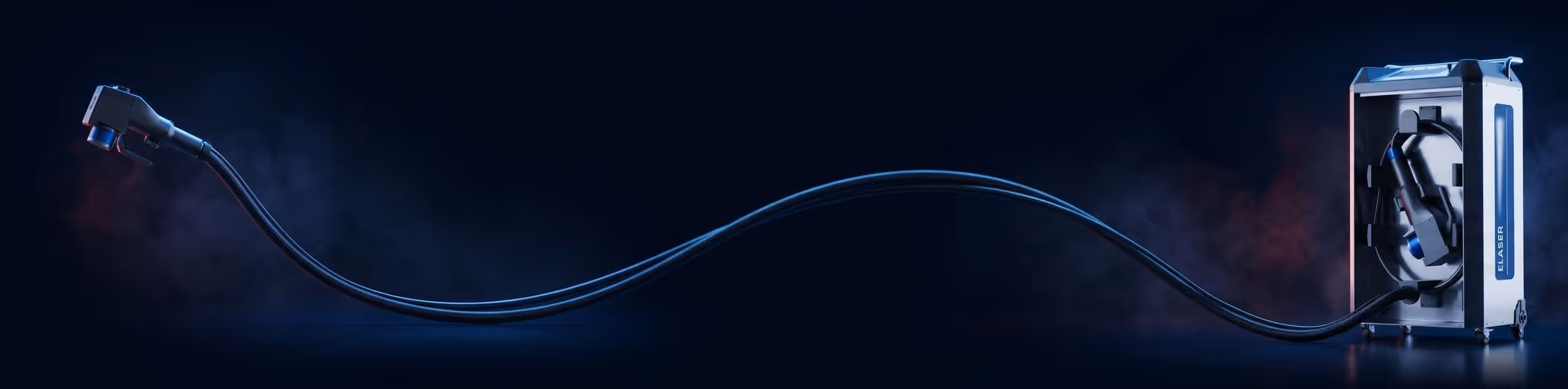

Fibre-optic Delivery Cable
A delivery cable up to 50 m long brings the beam to far-off or awkward spots, so the unit can stay put while you reach the work.
Applications
One Machine To Clean It All
Your permanent cleaning solution.
Buy one machine and use it for almost any application.
Injection moulding & tooling
Strip residue, release agents and build-up from moulds and tooling — in place, no disassembly.

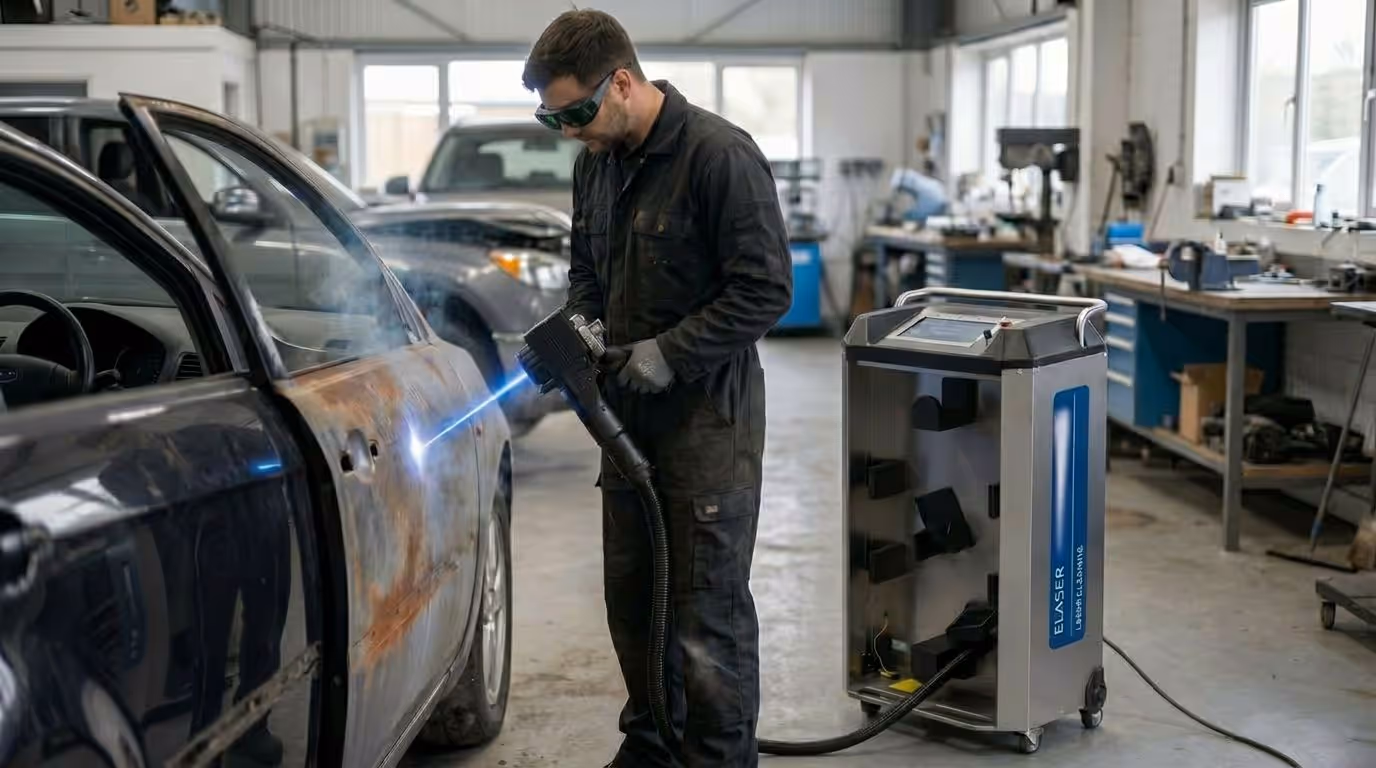

Automotive
From pre-weld prep on the line to rust and paint removal in the bodyshop.
Industrial maintenance
Clean plant, equipment and infrastructure on site — nothing to mask off, no media to clear up.
Tyre & rubber
Clean moulds, vents and vulcanisation residue without abrasives or mould wear.
Aerospace
Precise surface prep and component cleaning to tight tolerances.

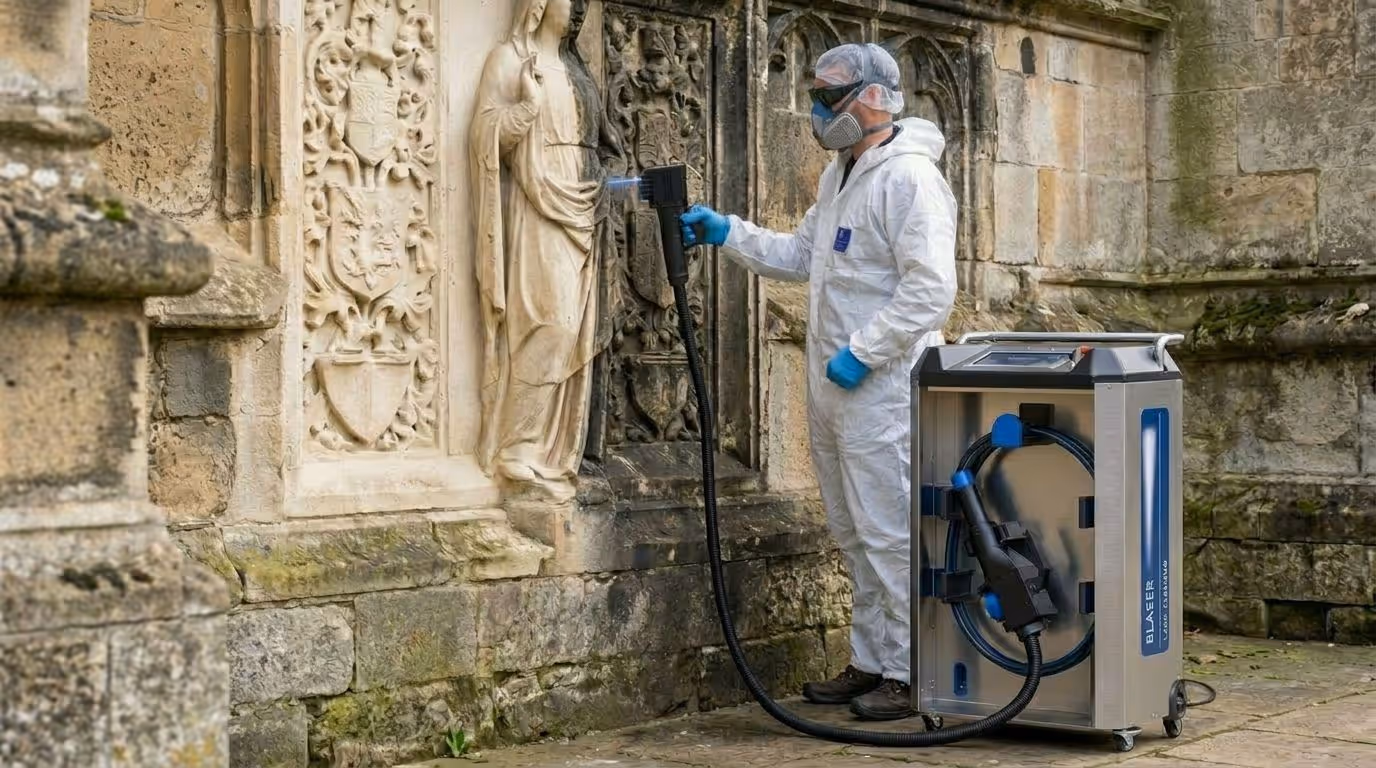

Heritage & restoration
Lift soiling, paint and corrosion from stone, metal and masonry — gentle on the original surface.

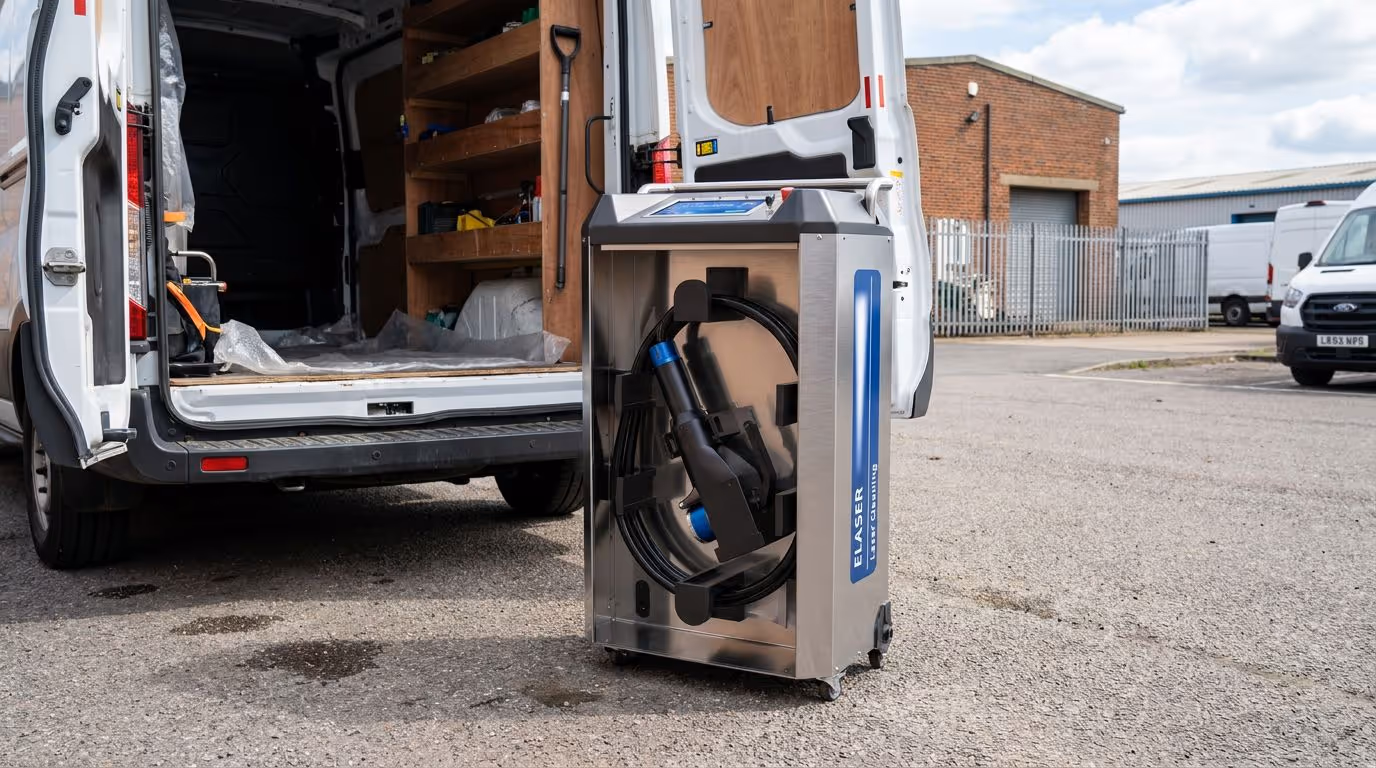

Start a cleaning-service business
A portable system and full operator training to launch your own laser-cleaning service.
The System That Pays for Itself
No chemicals or abrasives to keep purchasing.
A smaller hazard zone for faster setup and less downtime.
Gentler on the surface, so less rework.
The savings add up on every job.
Let's see what the ELASER-RHZ can do for you.
Tell us about your requirements — a relevant specialist will come back with all the answers within 1 working day.
John Clowes
CEO, WSL
Woodrow Scientific Limited
Technology That's Designed, Built & Supported by Experts
Manufacturer, not reseller
So you get support from the same engineers who built your machine.
British-engineering
Designed and built in the UK — precision hardware, made to last.
Global technology leader
10 patents and counting, including our world-first "eye-safe" laser cleaning technology.
